LZ5180JSQM3AB - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:294
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
LZ5180JSQM3AB Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
LZ5180JSQM3AB  Model technical parameters
Name: LZ5180JSQM3AB Exterior size(mm): 9000X2550X3550,3780
Chassis: LZ1182M3ABT Container size(mm): 5800,6100,5600X2470,2450X550
Total weight :(kg) 18000 Approach angle/ Departure angle(° ) 22/12
Payload:(kg) 7305,7805 Front suspension/rear suspension(mm): 1445/2455
Kerb Mass:(kg) 10500,10000(Kg) Max Speed(km/h): 90
Chassis parameters
Chassis: LZ1182M3ABT Axle weight: 6500/11500
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 5100 Fronttread(mm): 1916,1940,2046
Max people in cab: 3 Rear tread(mm): 1800,1860
Number of tires: 6 Number of spring axle: 11/12+9,3/4+3,2/2+1,2/3+2,3/3+2,2/12+9,8/10+8
Tire Type: 10.00-20,10.00R20,295/80R22.5
introduction: 1.选M3新面罩,选装箱板结构,选装随车起重机高位座椅和中位座椅,选装随车起重机后支腿。2.配直臂式起重机时,整车高度为3780mm。3.折臂式起重机QYS-6.3ZII,重量3300kg,最大起升载荷6300kg;直臂式起重机SQ6.3S,重量3800kg,最大起升载荷6300kg。4.吊机型号/整备质量/载质量对应关系: QYS-6.3ZII/10000/7805;SQ6.3S/10500/7305;多个尺寸差异导致的质量差异在3%内。5.防护材料采用Q235A钢板,连接方式为螺栓连接。后防护截面高度尺寸100mm,截面宽度尺寸50mm,下边缘离地高度450mm。6.安装具有卫星定位功能的行驶记录仪。ABS型号/企业:ABS-E 4S/4M /威伯科汽车控制系统有限公司。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
YC6JA180-50
YC6JA200-50
YC6JA220-50
ISD210
50
ISB190
50
ISB220
50
广西玉柴机器股份有限公司
广西玉柴机器股份有限公司
广西玉柴机器股份有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
东风康明斯发动机有限公司
6870
6870
6870
6700
5900
5900
132
147
162
155
140
162
other parameters
Introduction:

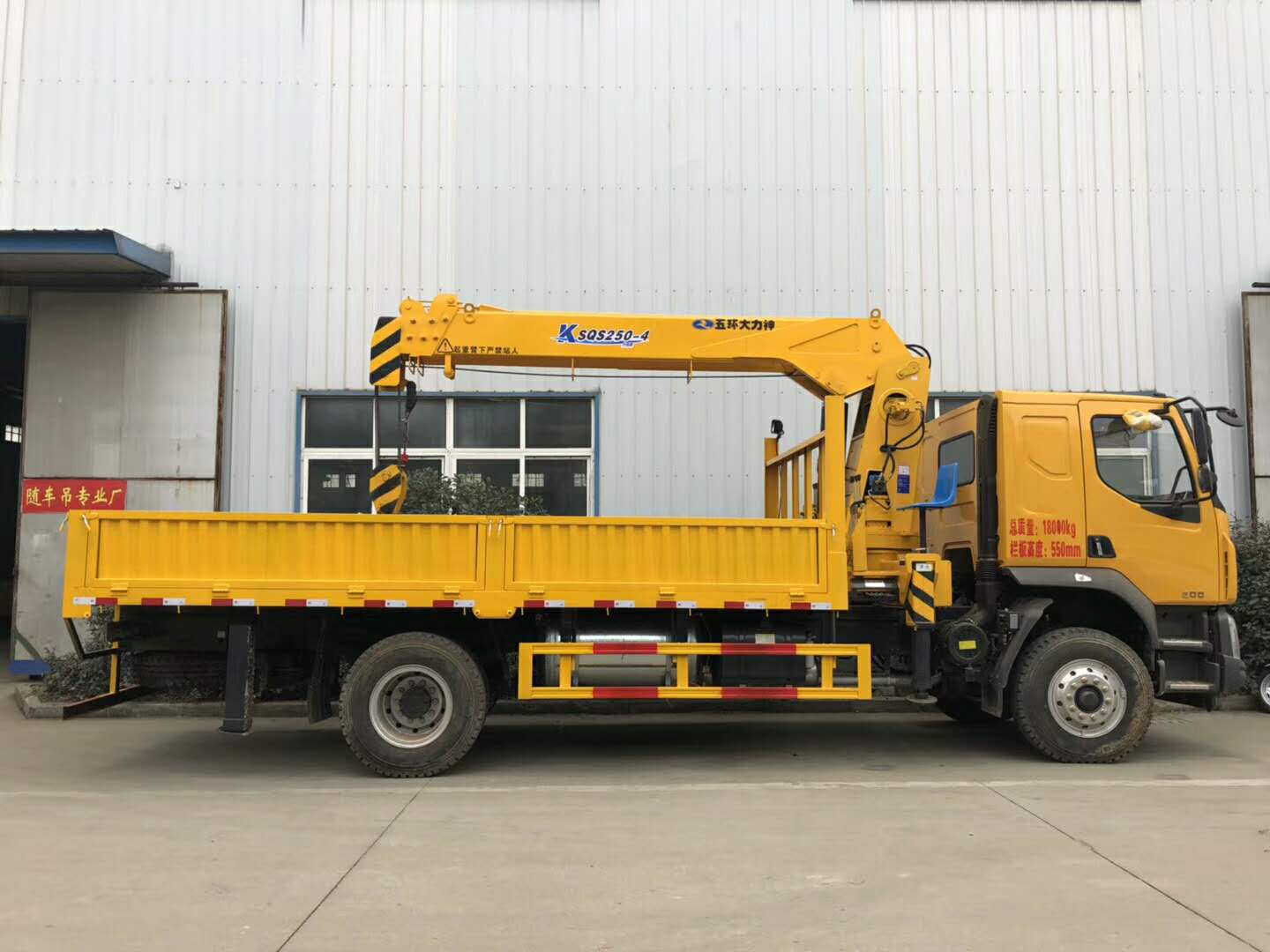

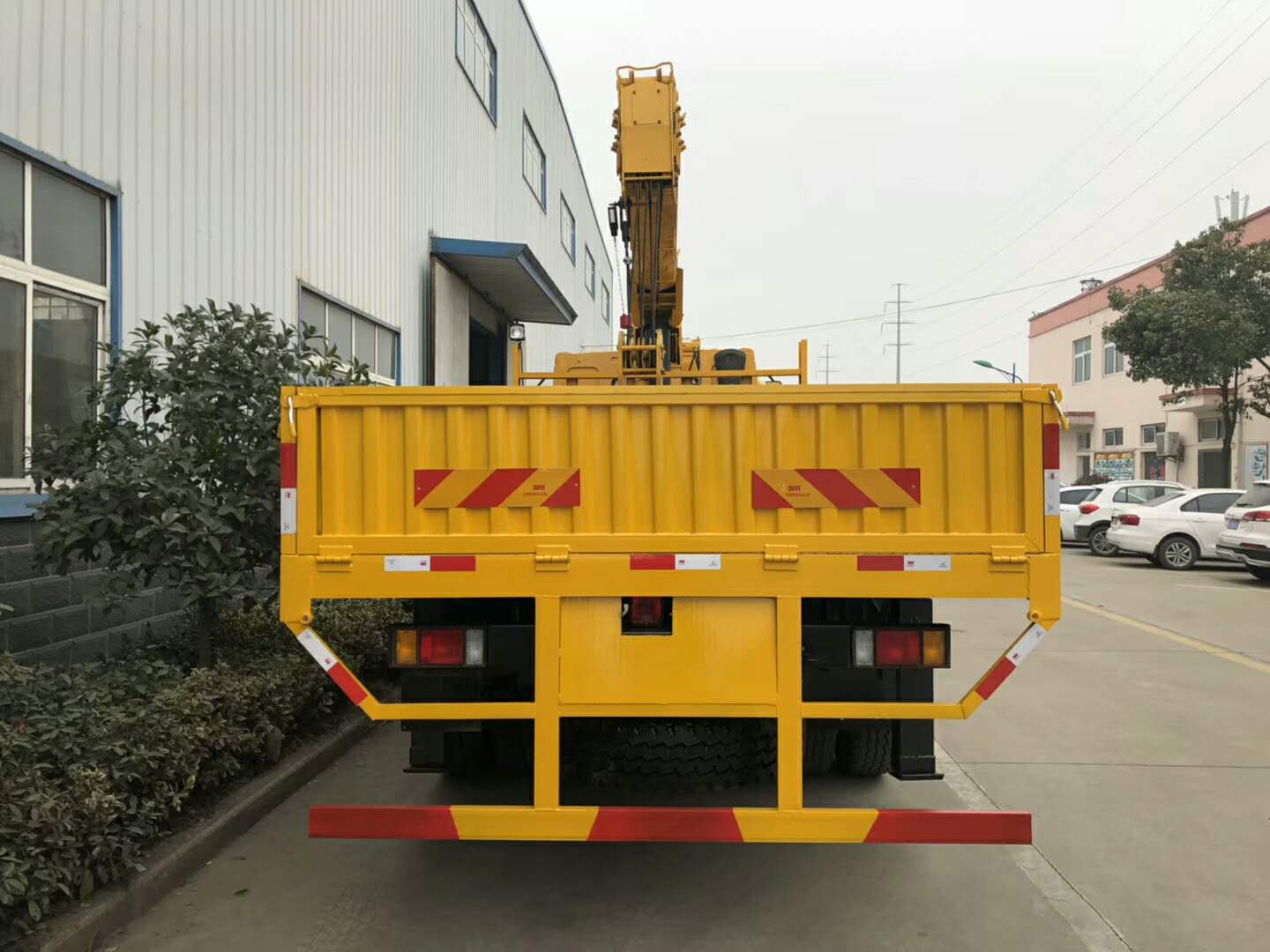

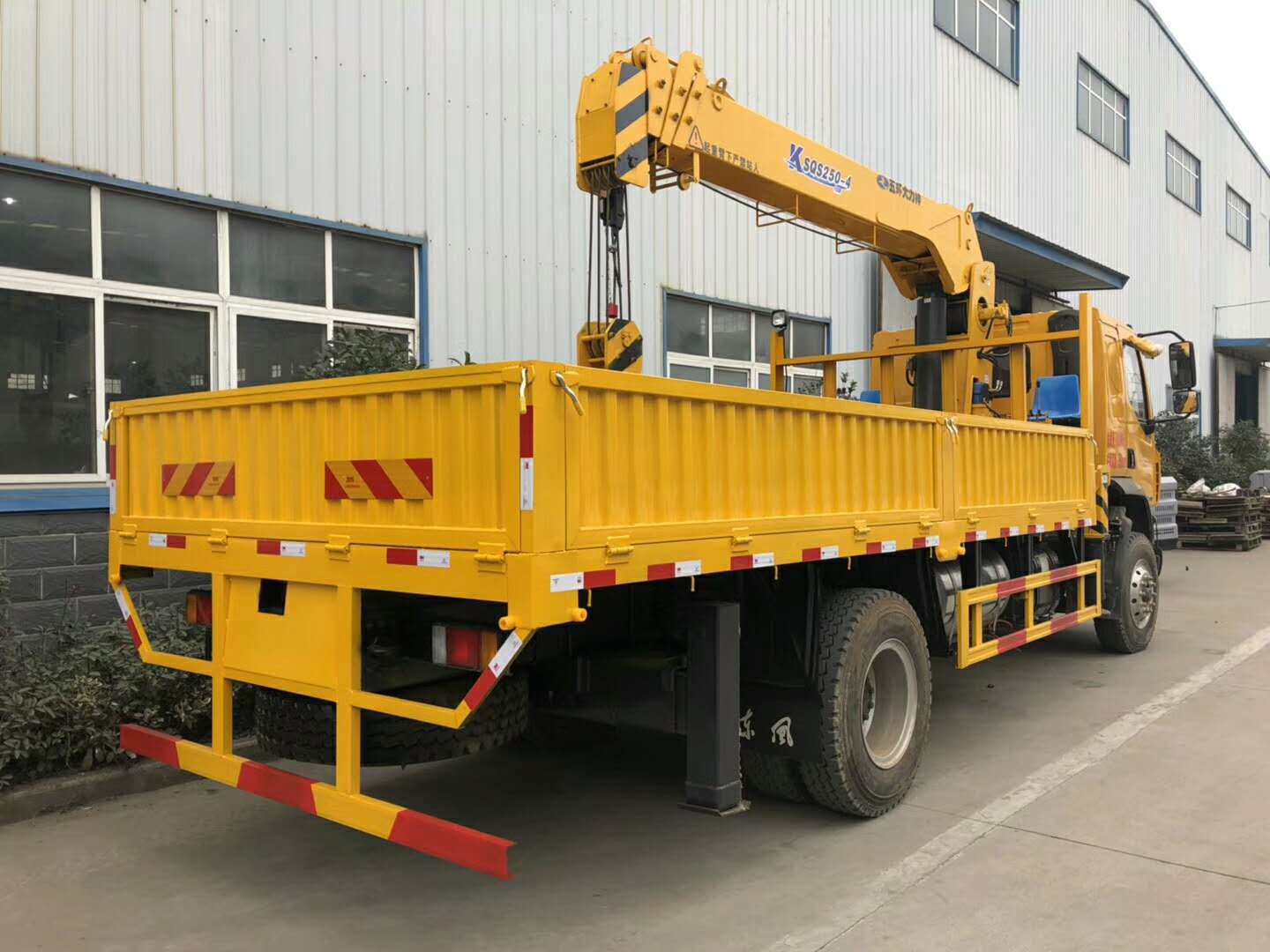

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
