HFC5311JSQYP1K4H43V - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:248
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
HFC5311JSQYP1K4H43V Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
HFC5311JSQYP1K4H43V  Model technical parameters
Name: HFC5311JSQYP1K4H43V Exterior size(mm): 12000X2550X3800
Chassis: HFC5311JSQYP1K4H43V Container size(mm): 8300X2460X650,550
Total weight :(kg) 31000 Approach angle/ Departure angle(° ) 17/11
Payload:(kg) 15905,15970 Front suspension/rear suspension(mm): 1495/2755
Kerb Mass:(kg) 14900(Kg) Max Speed(km/h): 95
Chassis parameters
Chassis: HFC5311JSQYP1K4H43V Axle weight: 6500/6500/18000(二轴组)
Number of axles: 4 Fuel Type: Diesel fuel
Wheelbase(mm): 2100+4300+1350 Fronttread(mm):
Max people in cab: 3,2 Rear tread(mm):
Number of tires: Number of spring axle:
Tire Type:
introduction: 1.侧面及后下部防护装置连接方式为螺栓连接,侧防护装置材料材质为:Q235;后防护装置材料材质为:510L,后防护离地高度为500mm,断面尺寸长×宽为:150mm×75mm;2.安装带卫星定位功能的行驶记录仪;4.发动机WP10.310E53的油耗申报值(L/100km)为40.8;3.ABS控制器型号/生产企业:VIE ABS-II/浙江万安科技股份有限公司,CM4XL-4S/4M/广州科密汽车电子控制技术股份有限公司;4.选装货箱形式,选装内插式及外插式货箱结构;5.选装多种吊机,可选装折臂式吊机,吊机型号/最大起升载荷(kg)/吊机重量(kg)分别为:SQS300/12000/4400,SQZ300/12000/4400,SPS25000B/10000/4400,SPS30000B/12000/4400,不同吊机整备质量变化在3%范围内.
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
WP10.310E53 潍柴动力股份有限公司 9726 228
other parameters

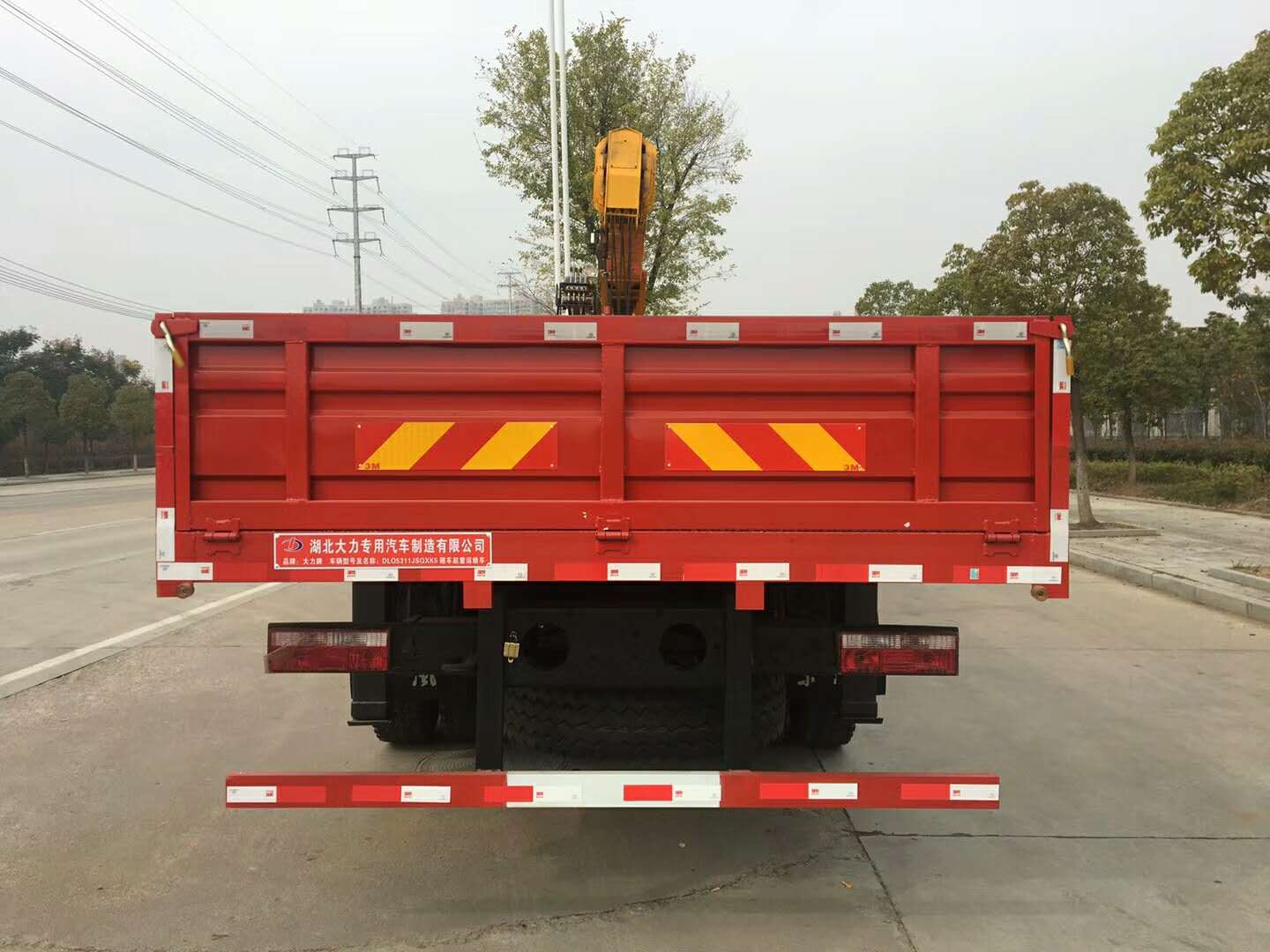

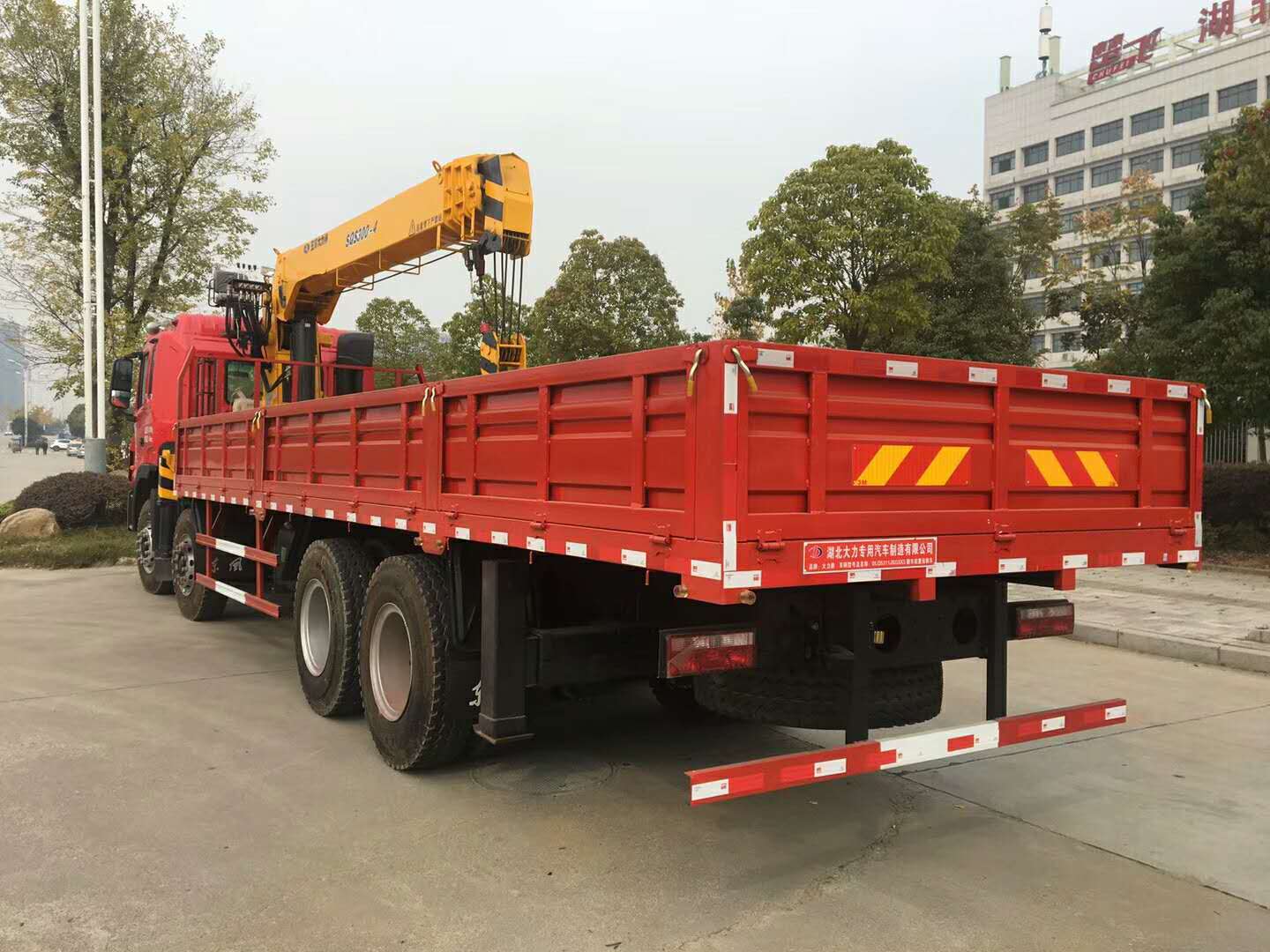

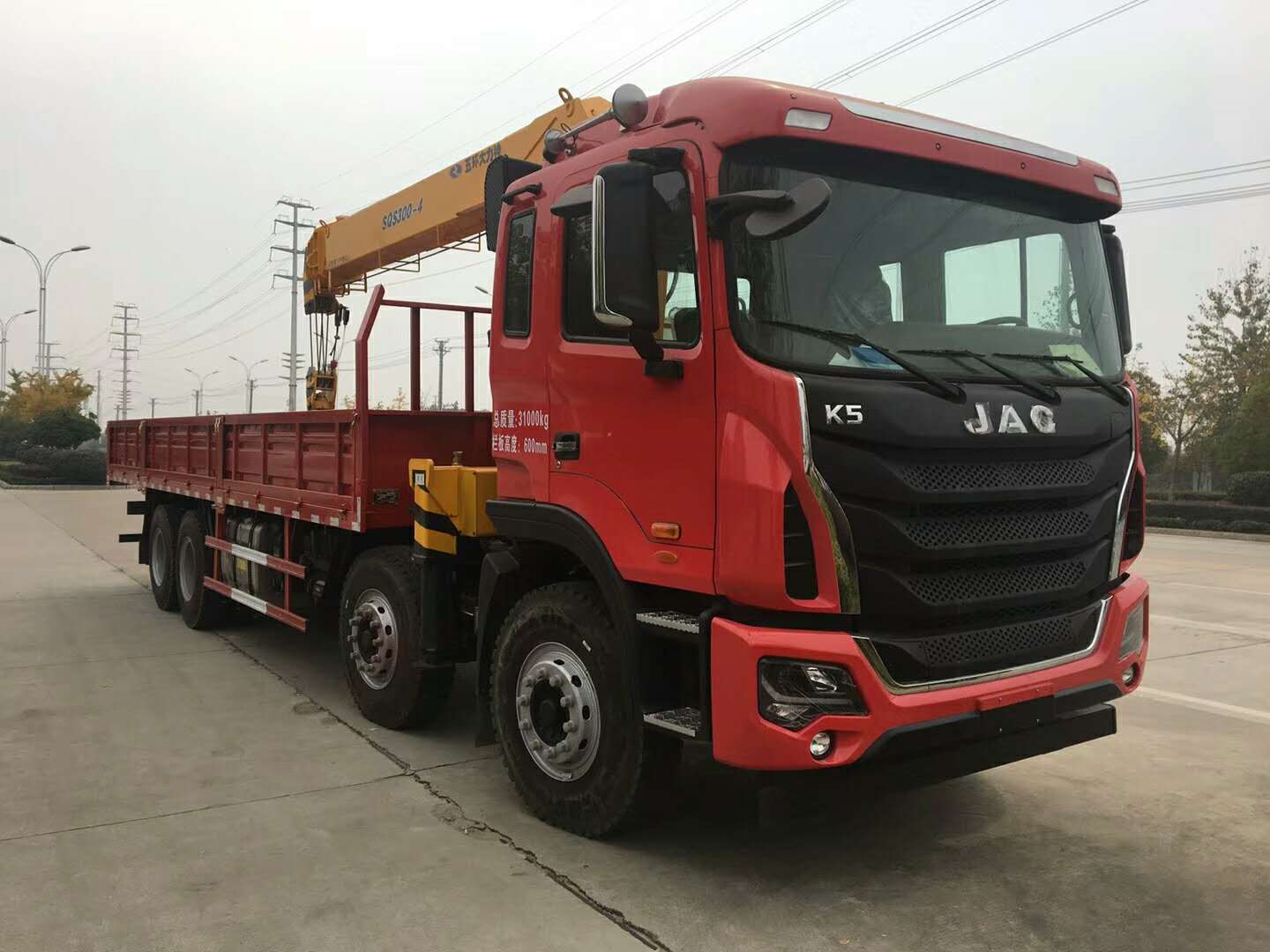

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
