EQ5258JSQFV Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
EQ5258JSQFV  Model technical parameters
Name: EQ5258JSQFV Exterior size(mm): 9950,10600,10800,11400,11600,11950,12000X2480,2500,2550X3850,3980
Chassis: EQ5258JSQFVJ Container size(mm): 6500,7100,7500,8200,8500X2300,2400X550,800
Total weight :(kg) 24700 Approach angle/ Departure angle(° ) 23/10,23/9,20/10,20/9
Payload:(kg) 8905,8405 Front suspension/rear suspension(mm): 1250/3050,1250/3300,1250/3500,1450/2850,1450/3300,1450/3500,1450/3350
Kerb Mass:(kg) 15600,16100(Kg) Max Speed(km/h): 90
Chassis parameters
Chassis: EQ5258JSQFVJ Axle weight: 6700/18000(二轴组)
Number of axles: 3 Fuel Type: Diesel fuel
Wheelbase(mm): 4350+1300,4750+1300,5350+1300,5850+1350 Fronttread(mm):
Max people in cab: 3 Rear tread(mm):
Number of tires: Number of spring axle:
Tire Type:
introduction: 1、随底盘选装驾驶室。选装货厢样式及厢板结构、吊机操纵台位置及液压油箱位置。2、外形长度尺寸、轴距、接近角/离去角和前悬/后悬对应关系为:9950,4350+1300,23(20)/10,1250(1450)/3050(2850);10600(10800),4750+1300,23(20)/10,1250(1450)/3300;11400(11600),5350+1300,23(20)/9,1250(1450)/3500;11950(12000),5850+1350,23(20)/9,1250(1450)/3500(3350)。3、可选装直臂式或折臂式吊机,型号/吊机重量(kg)/最大起升载荷(kg)/整备质量(kg)/载质量(kg)分别为:(SQS250,QYS-10,ZLC2500T,URV1004,KS2304,DFSQ25000,SQ1004):4200/10000/15600/8905;(SQS300,QYS-12,ZLC3000T,URV1204,KS2504,DFSQ30000,SQ1204):4500/12000/16100/8405;(SQZ200,QYS-10Z,HB170):4000/10000/15600/8905;(SQZ300,QYS-12Z,HB200):4300/12000/16100/8405。4、护栏材质:Q235,护栏与车架螺栓连接。后部防护断面尺寸(高×宽)为110×55 (mm),离地高度510mm。5、该车安装具有卫星定位功能的行驶记录仪。6、ABS的型号及生产厂家: J ABS/焦作博瑞克控制技术有限公司。
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
YC6A240-50
ISB210
50
广西玉柴机器股份有限公司
东风康明斯发动机有限公司
7520
5900
177
155
other parameters
Introduction:

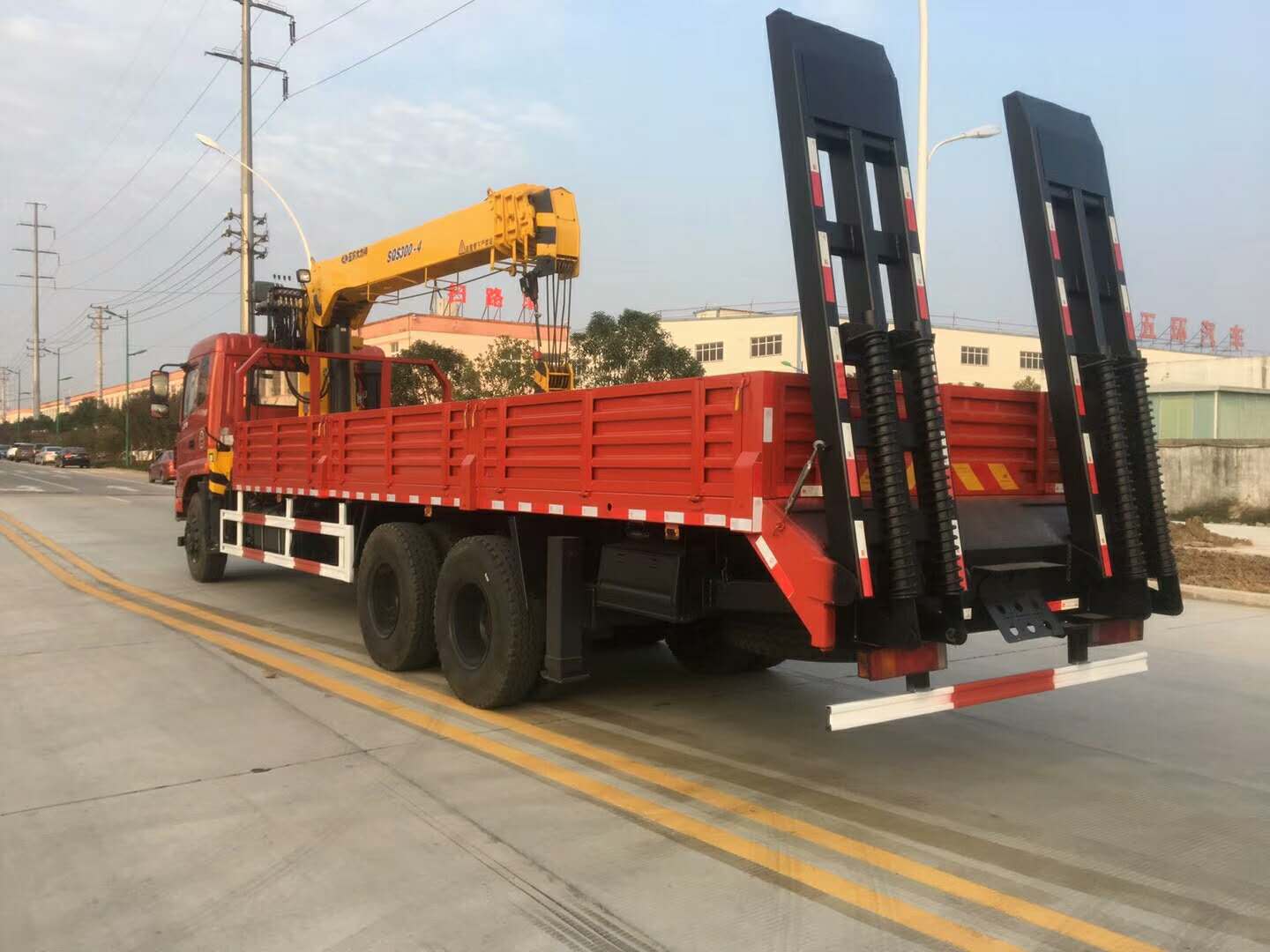

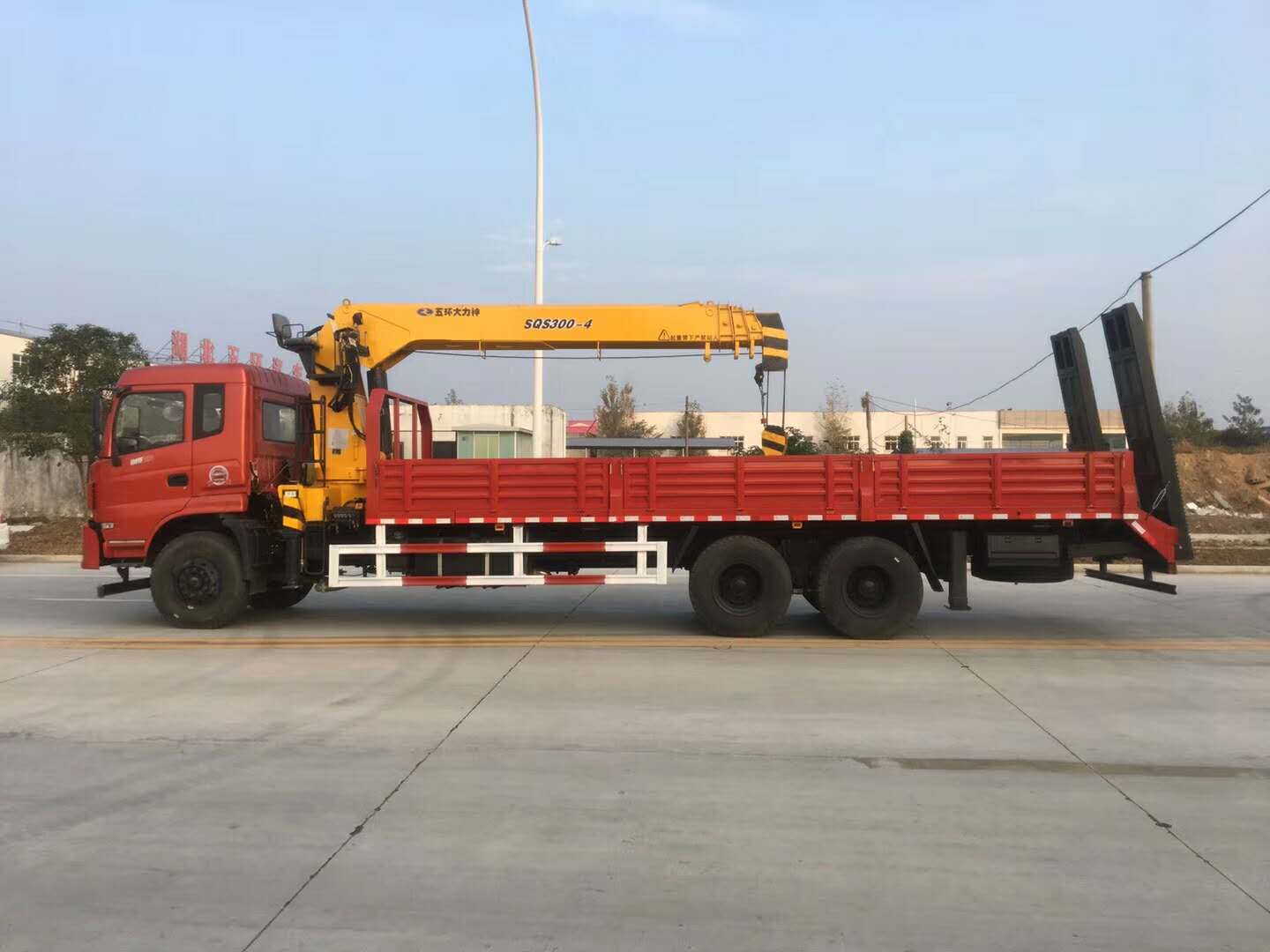

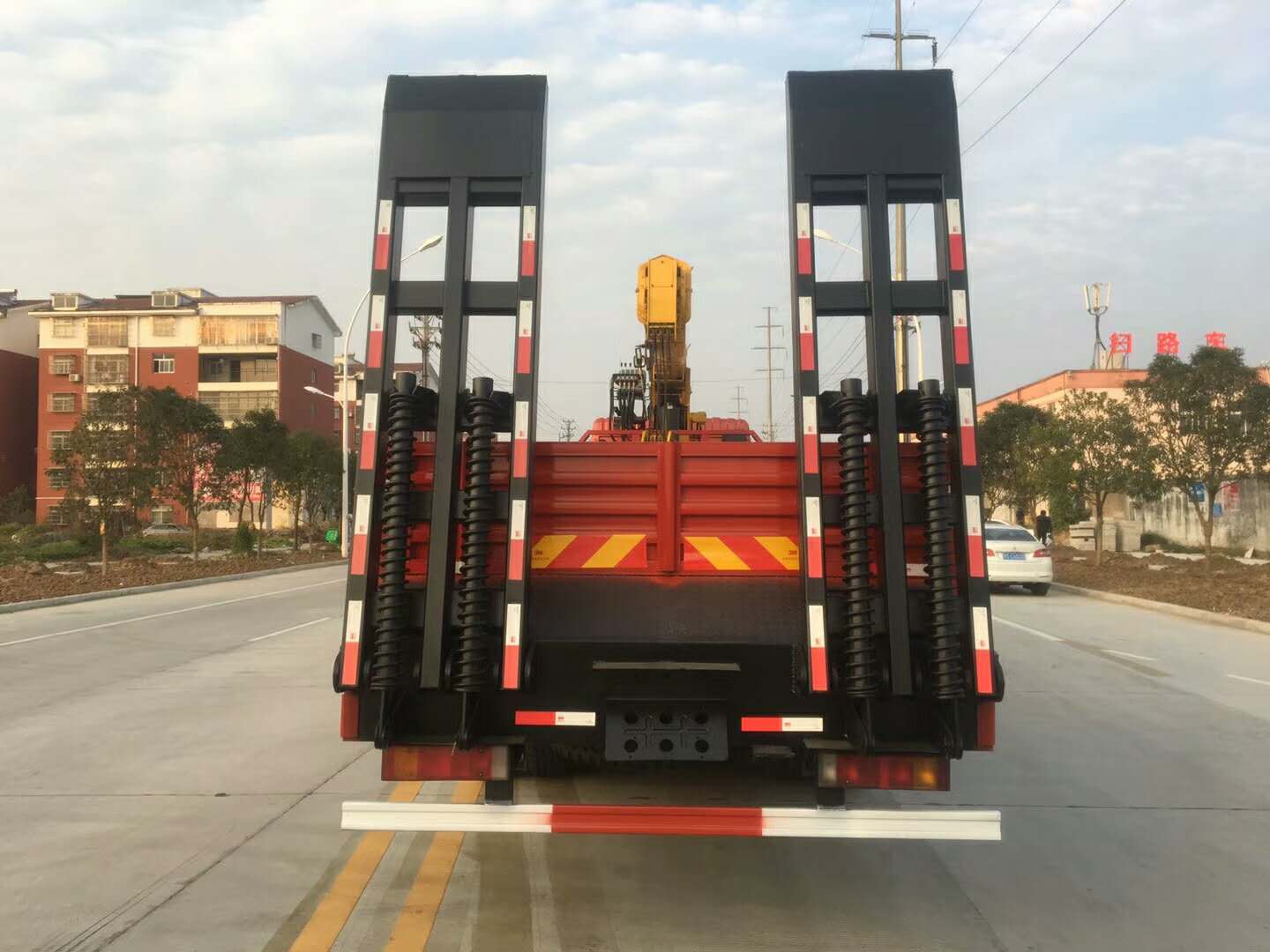

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
