DYQ5121JSQD5AB - Suizhou Liyuan Trading Co., Ltd
  • Phone:Mr zhou +86 15997916929
  • Add time:2011-07-08 11:15:17
  • Hits:247
for the convenience of users to mention cars, our company agents to carry out car door-to-door delivery service.
the above price of vehicles, models, such as configuration and the color difference, please in order to prevail.
.
DYQ5121JSQD5AB Detail - Suizhou Liyuan Trading Co., Ltd
Detailed parameters
DYQ5121JSQD5AB  Model technical parameters
Name: DYQ5121JSQD5AB Exterior size(mm): 7280,7480,7780,7590,7995X2400,2500X3560
Chassis: DYQ1121D5AA Container size(mm): 4300,4500,4800,5100X2100,2200X550,600
Total weight :(kg) 11995 Approach angle/ Departure angle(° ) 25/22,25/21
Payload:(kg) 4500,4200 Front suspension/rear suspension(mm): 1240/2140,1300/2080,1240/2250,1300/2190,1240/2355,1300/2295,1240/2055,1300/1995
Kerb Mass:(kg) 7300,7600(Kg) Max Speed(km/h): 90
Chassis parameters
Chassis: DYQ1121D5AA Axle weight: 4340/7655
Number of axles: 2 Fuel Type: Diesel fuel
Wheelbase(mm): 3900,4100,4400,4700 Fronttread(mm):
Max people in cab: 3 Rear tread(mm):
Number of tires: Number of spring axle:
Tire Type:
introduction: 随底盘选装前组合灯,前雾灯,前保险杠,前面板,外侧板,遮阳罩,选装后视镜安装位置.ABS型号和生产厂家:VIE ABS-Ⅱ,浙江万安科技股份有限公司;ABS型号和生产厂家:ABS/ASR-24V-4S/4M,东科克诺尔商用车制动系统( 十堰) 有限公司。该车安装具有卫星定位功能的行驶记录仪.发动机对应油耗申报值均为:24.5L/100km.防护装置材料:Q235,螺栓连接,后防护装置断面尺寸为140×40mm,离地高度:500mm。可选装直臂式或折臂式吊机;直臂式吊机型号:吊机重量(kg)/最大起升载荷(kg)分别为:SQ5S:2200/5000;折臂式吊机型号:吊机重量(kg)/最大起升载荷(kg)分别为:SQ5Z:2000/5000。1、前悬/后悬(1240/2140)和前悬/后悬(1300/2080)对应外形尺寸长/轴距分别为:7280/3900;7480/4100;7780/4400;2、外形尺寸长/轴距/前悬/后悬对应关系为:7590/4100/1240/2250;7590/4100/1300/2190;7995/4400/1240/2355;7995/4400/1300/2295,7995/4700/1240/2055;7995/4400/1300/1995.
Engine parameters
Type Manufacturer Displacement(ml) Power(kw)
YC4E140-56
YC4FA120-50
YN38CRE1
广西玉柴机器股份有限公司
广西玉柴机器股份有限公司
昆明云内动力股份有限公司
4260
2982
3760
103
88
95
other parameters
Introduction:

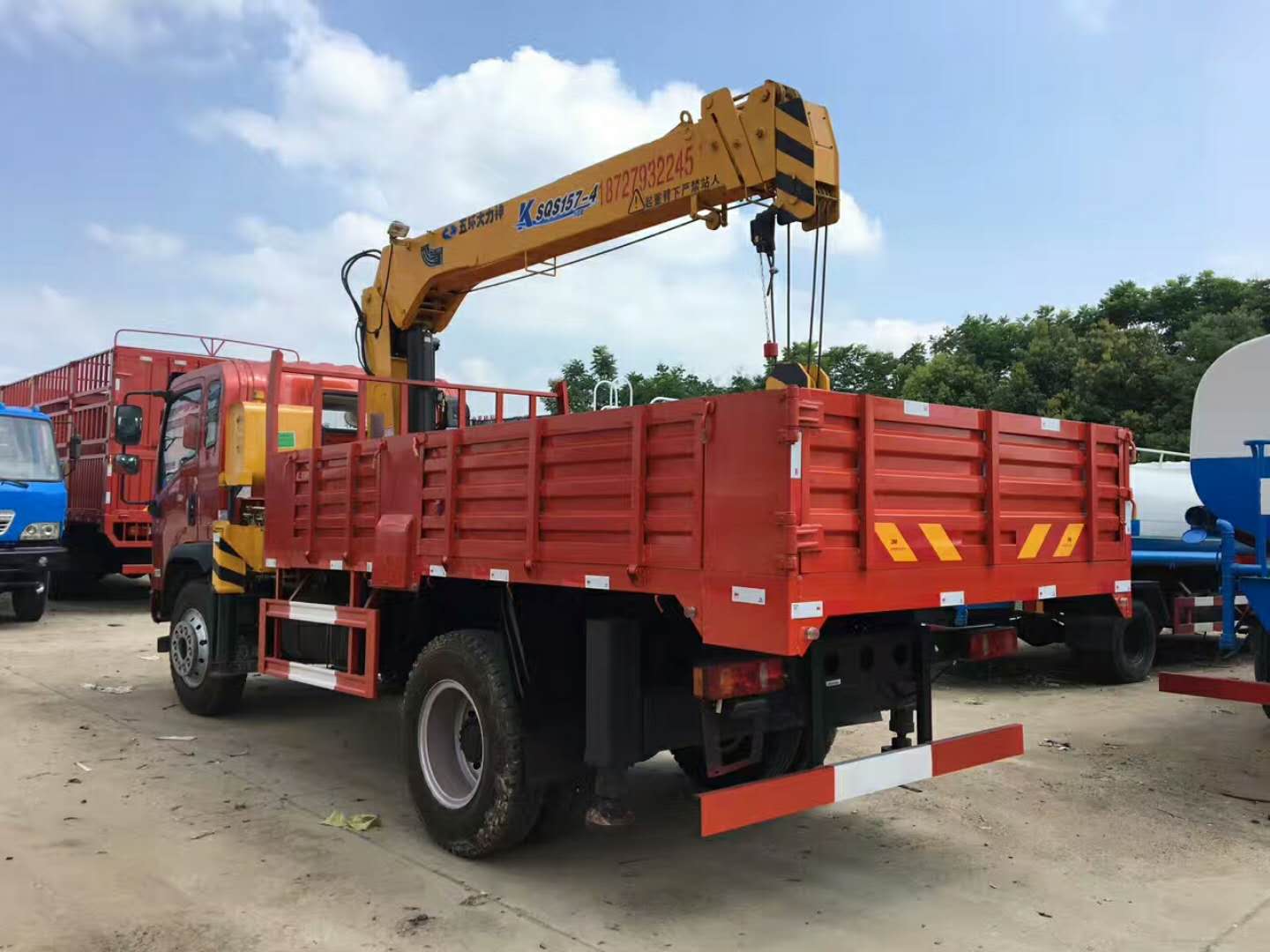

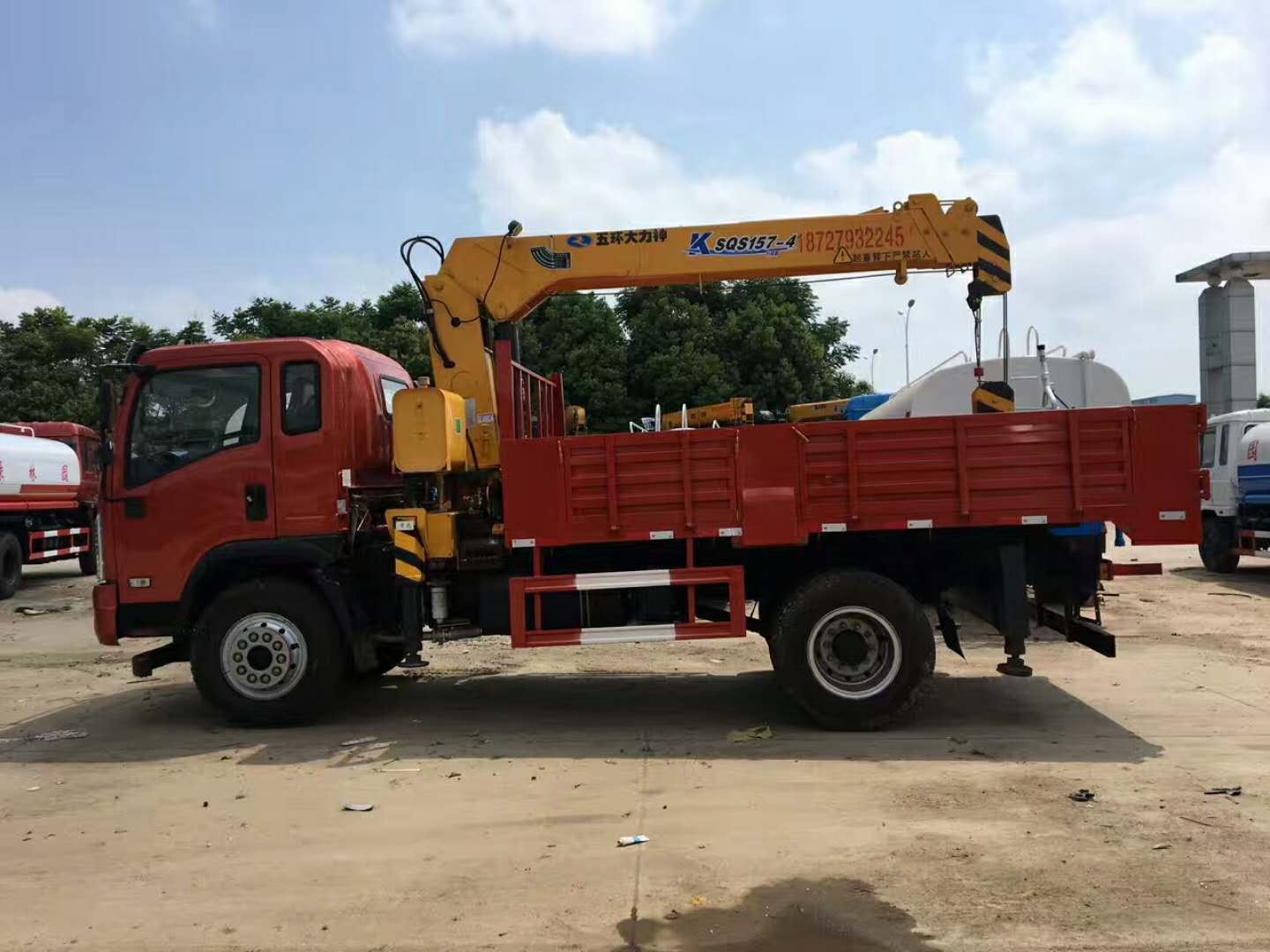

more Picture:
※ Need more information or pictures?please contact us and we will provide best service!。
